Axle dimensions

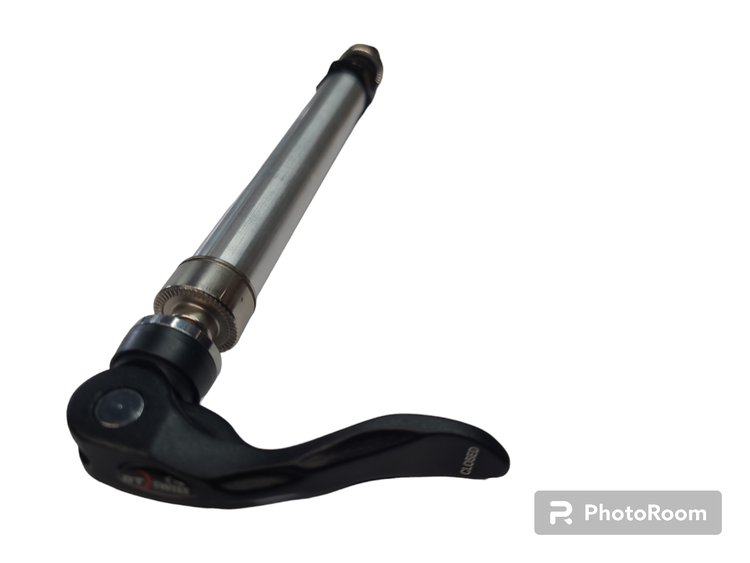

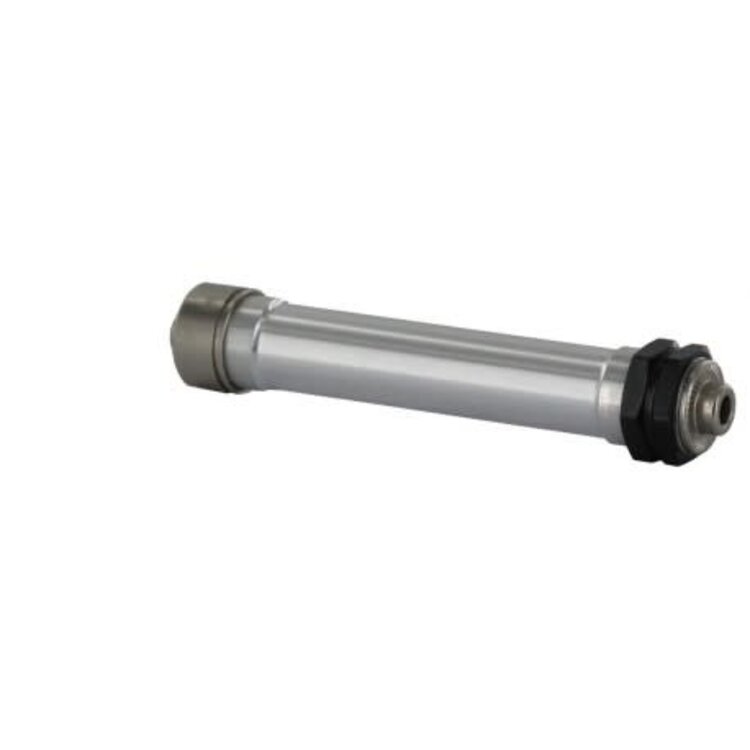

American Classic Disc 225 / DT SWiss Rear hubs can be converted from 15mm thru axle to 9mm QR to using Am Classic 15mm Rear Thru Axle Conversion Kit.

• outer diameter: 17mm;
• inner diameter: 15mm;
• overall width: 142mm;
• width between end caps: 135 mm;
• end cap width: 10.5mm (although one side is adjustable from 10.1mm to 12.5mm to bearing preload adjustment);
